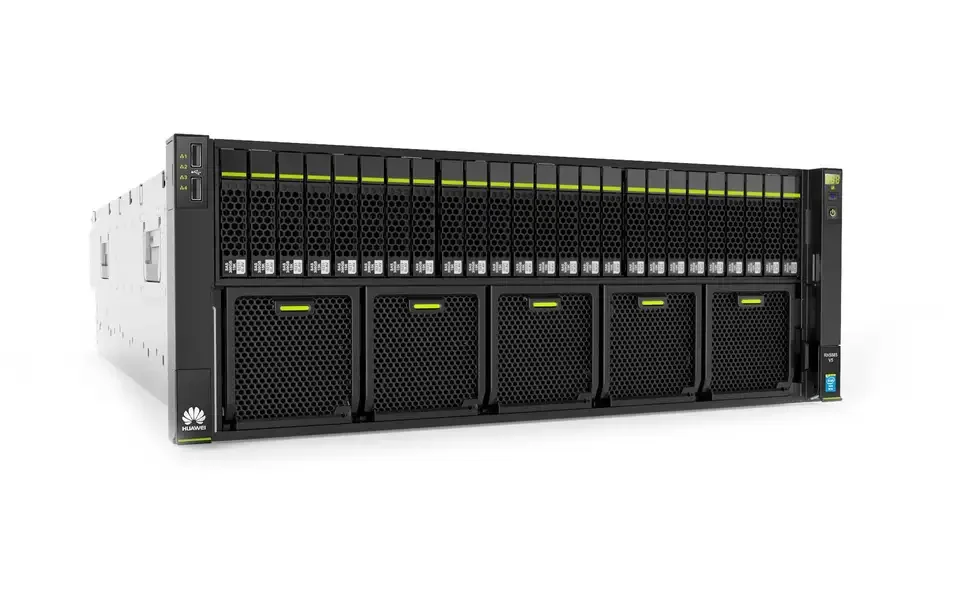

• Huawei FusionServer 5885H V5 – 4 U, 4-Socket Rack Server for Mission-Critical Compute

    Keywords

    FusionServer 5885H V5,#FusionServer 5885H V5, Huawei rack server,#Huawei rack server, Intel Xeon Scalable,#Intel Xeon Scalable, DDR4 DIMMs,#DDR4 DIMMs, Optane PMem,#Optane PMem, NVMe SSD,#NVMe SSD, DEMT,#DEMT, FDM,#FDM, eSight management,#eSight management

    Description

    The Huawei FusionServer 5885H V5 is a 4 U, four-socket rack server designed for mission-critical applications such as virtualization, high-performance computing (HPC), and enterprise databases(XFUSION INTERNATIONAL PTE. LTD.). It can be equipped with four Intel® Xeon® Scalable processors (up to 205 W TDP) to deliver exceptional multi-core performance.

    With 48 DDR4 DIMM slots at 2 666 MT/s, the 5885H V5 supports expansive memory footprints for virtualization and in-memory databases; dual M.2 SSDs provide fast, redundant boot volumes for rapid system startup and recovery.

    Local storage is highly flexible: front bays can hold 8, 24, or 25 × 2.5″ SAS/SATA drives, or a hybrid mix of 16 SAS/SATA + 8 NVMe SSDs, supporting up to eight NVMe drives for premium I/O performance. Hardware RAID levels 0, 1, 5, 50, 6, 60 (with optional supercapacitor-backed cache) ensure data integrity and swift rebuilds.

    Key Features

    • Four-Socket Xeon Scalable: Up to 4× 1st-Gen Intel® Xeon® Scalable CPUs (5100/6100/8100 series), 205 W TDP

    • 48 DDR4 DIMM Slots: Supports UDIMM/RDIMM at 2 666 MT/s for up to 3 TB memory capacity.

    • Flexible Drive Bays: 8/24/25×2.5″ SAS/SATA HDDs; 16 SAS/SATA + 8 NVMe; 8 NVMe only; plus 2× M.2 SSDs.

    • NVMe Acceleration: Up to eight NVMe drives for sub-millisecond latency in database and analytics workloads

    • Enterprise RAID: Levels 0, 1, 5, 50, 6, 60; supercap cache backup; online migration; drive roaming; remote web config.

    • Patented DEMT & FDM: Dynamic Energy Management Technology and Fault Diagnosis & Management minimize power consumption and accelerate fault isolation.

    • Huawei eSight: Full-lifecycle management suite for monitoring, provisioning, and firmware updates to reduce OPEX and improve ROI(XFUSION INTERNATIONAL PTE. LTD.).

    • Hot-Swap RAS: Redundant PSUs/fans, chassis intrusion detection, ECC memory, and TPM support ensure 24×7 reliability.

    Configuration

    Component Specification
    Model FusionServer 5885H V5 (XFUSION INTERNATIONAL PTE. LTD.)
    Form Factor 4 U, 4-socket rack server
    Processors 2–4× Intel® Xeon® Scalable (5100/6100/8100), up to 205 W TDP
    Memory 48× DDR4 DIMMs @ 2 666 MT/s (up to 3 TB)
    Storage Bays 8/24/25×2.5″ SAS/SATA; 16×SAS/SATA + 8×NVMe; 8×NVMe; 2×M.2 SSD
    RAID 0/1/5/50/6/60; optional supercap cache protection; online level migration; drive roaming
    Network 2×10 GbE + 2×1 GbE LOM ports
    Expansion 15× PCIe 3.0 slots
    Power Redundant hot-swap PSUs (900 W–3000 W AC Platinum/Ti; HVDC/DC options)
    Cooling Redundant hot-swap fans (N+1)
    Management BMC: Redfish/SNMP/IPMI 2.0, HTML5/VNC KVM; Huawei eSight
    Security TPM 2.0, chassis intrusion detection, secure boot, admin passwords
    Patented Tech DEMT, FDM

    Compatibility

    • Virtualization: VMware vSphere, Microsoft Hyper-V, KVM on RHEL/SLES

    • Management: Huawei eSight, FusionDirector, third-party DCIM via Redfish/SNMP

    • Storage Fabrics: NVMe-oF, iSCSI, FC via PCIe NICs

    Usage Scenarios

    1. Enterprise Virtualization
      Four-socket design and large DRAM/PMem footprint support dense VM consolidation, improving ROI on server estates.

    2. High-Performance Computing
      Eight NVMe SSDs and Patented DEMT deliver high I/O throughput with energy efficiency for simulation and modeling tasks.

    3. In-Memory Databases
      48 DIMMs plus dual M.2 boot enable sub-millisecond query response for SAP HANA and real-time analytics systems.

    4. Mission-Critical Databases
      Hardware RAID with supercap cache, FDM diagnostics, and redundant RAS features ensure data integrity and availability.

    Frequently Asked Questions

    Q1: How many processors can the 5885H V5 accommodate?
    A1: Up to four Intel® Xeon® Scalable 1st-Gen processors (5100/6100/8100 series) at 205 W each(XFUSION INTERNATIONAL PTE. LTD.).

    Q2: What memory options are available?
    A2: It supports 48 DDR4 DIMMs at 2 666 MT/s (max 3 TB) and dual M.2 SSDs, enabling high-performance and boot resiliency

    Q3: Can I configure NVMe alongside SAS/SATA drives?
    A3: Yes—you can mix 16× SAS/SATA + 8× NVMe drives for best-of-both storage performance and capacity

    Q4: Which management tools are integrated?
    A4: The BMC offers Redfish, SNMP, IPMI 2.0, and HTML5/VNC KVM; Huawei eSight provides full-lifecycle monitoring and automation(XFUSION INTERNATIONAL PTE. LTD.).

    Q5: How does DEMT improve efficiency?
    A5: Dynamic Energy Management Technology reduces power consumption by up to 15 % under load, lowering OPEX without sacrificing performance(XFUSION INTERNATIONAL PTE. LTD.).
